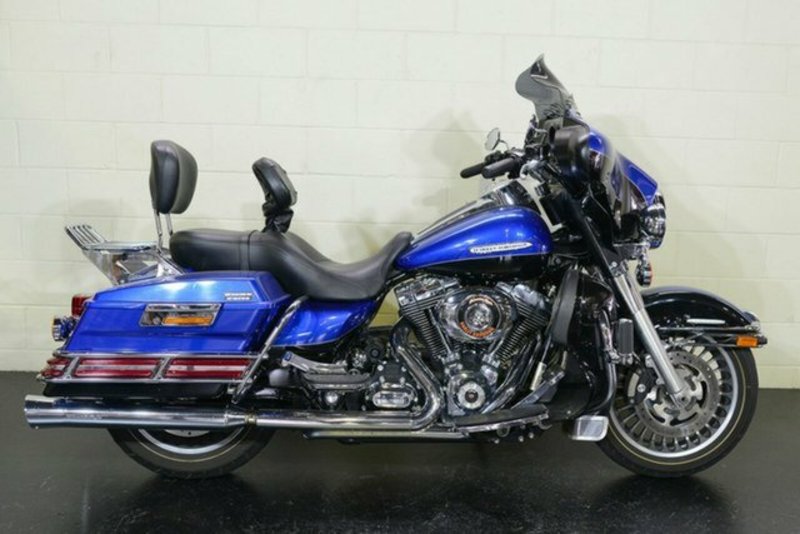

2010 harley-davidson 1700cc flhtk electra glide ultra ltd my10

HARLEY DAVIDSON ELECTRA GLIDE FLHTK Engine5 Air-cooled, Twin Cam 103™ with integrated oil cooler Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder Bore x Stroke 3.88 in. x 4.38 in. (98.43 mm x 111.25 mm) Displacement5 103 cu. in. (1690 cc) Compression Ratio 9.7:1 Fuel System6 Electronic Sequential Port Fuel Injection (ESPFI) Air Cleaner Fiberglass, washable Lubrication System Pressurized, dry-sump with oil cooler Drivetrain Primary Drive Chain, 34/46 ratio Final Drive Belt, 32/68 ratio Clutch Multi-plate, wet Transmission 6-Speed Cruise Drive® U.S. Gear Ratios (overall): o 1st 9.593 o 2nd 6.650 o 3rd 4.938 o 4th 4.000 o 5th 3.407 o 6th 2.875 Chassis Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded Front Forks 41.3 mm telescopic, triple-circuit damping Rear Shocks Air-adjustable Wheels7: Contrast Chrome, 28-spoke Cast Aluminum o Front 17 in. x 3 in. (431.80 mm x 76.20 mm) o Rear 16 in. x 5 in. (406.40 mm x 127.0 mm) Brakes: o Caliper Type 32 mm, 4-piston fixed front and rear o Rotor Type (diameter x width): Patented, fixed rotors o Front (dual) 11.81 in. x .20 in. (299.97 mm x 5.08 mm) o Rear 11.81 in. x .28 in. (299.97 mm x 7.11 mm) o Anti-Lock Braking System (option) Available Suspension Travel: o Front Wheel 4.60 in. (116.84 mm) o Rear Wheel 3 in. (76.20 mm) Engineered for Sidecar Use Available Performance Engine Torque8 (per SAE J1349): o North America 102 ft. lbs. @ 3500 rpm (138.29 Nm @ 3500 rpm) Lean Angle (per SAE J1168): o Right 33° o Left 31° Fuel Economy9 (EPA urban/highway test) 35/54 mpg (6.72/4.36 L/100 km) electric Battery (per Battery Council International Rating) Sealed, maintenance-free, 12V, 28-amp/hour, 370 cca Charging Three-phase, 50-amp system (585W @ 13V, 2000 rpm, 650W max power @ 13V) Starting 1.2 kW electric with solenoid shift starter motor engagement Lights (as per country regulation): o Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam o Auxiliary Lamps Two @ 35W each (except where prohibited by law) o Tail/Stop Lights 8W/28W (5W/21W) o Turn Signal Lights 28W (21W) self-canceling o Indicator Lamps High beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS o Electric Power Outlet Tour-Pak® 12 volt - 15 amp power supply Dimensions Length 98.60 in. (2504.44 mm) Overall Width 38.0 in. (965.20 mm) Overall Height 61.0 in. (1549.40 mm) Seat Height: o Laden2 27.30 in. (693.42 mm) o Unladen 30.70 in. (779.78 mm) Ground Clearance 5.10 in. (129.54 mm) Rake (steering head) 26° Fork Angle 29.2° Trail 6.69 in. (169.93 mm) Wheelbase 63.50 in. (1612.90 mm) Tires (Dunlop® Harley-Davidson Series, bias narrow whitewall): o Front - D408F NW 130/80B17 65H o Rear - D407 NW 180/65B16 81H Fuel Capacity 6 gal. (22.71 L) (warning light at approximately 1 gal.) Oil Capacity3 (w/filter) 4 qts. (3.78 L) Transmission Capacity 1 qts. (0.95 L) Primary Chain Case Capacity4 1.40 qts. (1.32 L) Weight: o As Shipped 857 lbs. (388.74 kg) o In Running Order 901 lbs. (408.69 kg) o Gross Vehicle Weight Rating 1360 lbs. (616.90 kg) o Gross Axle Weight Rating o Front 500 lbs. (226.80 kg) o Rear 927 lbs. (420.49 kg) FINANCE AND INSURANCE $23990 OR $24737 ON ROAD IN QLD.. THIS IS THE STEAL OF THE WEEK BE QUICK WONT LAST AT THIS PRICE....., HEAVY DUTY MOTORSPORTS (Brisbane) - Heavy Duty Motorsports have the Best Range of Pre Loved Harley-Davidson® Motorcycles in Queensland, with over 50 Late model Harleys® in the showroom we are sure to have a Harley that is right for you. When purchasing your Harley-Davidson’s from Heavy Duty Motorcycles you can relax knowing that your Harley has had a full workshop check by a qualify technician. Heavy Duty Motorsports can arrange transport to anywhere in Australia and also stock a huge range of OEM and aftermarket Accessories. Visit us at: 2365 Ipswich Road Oxley Queensland 4075, or call us: 1300 340 613
